386447-0514

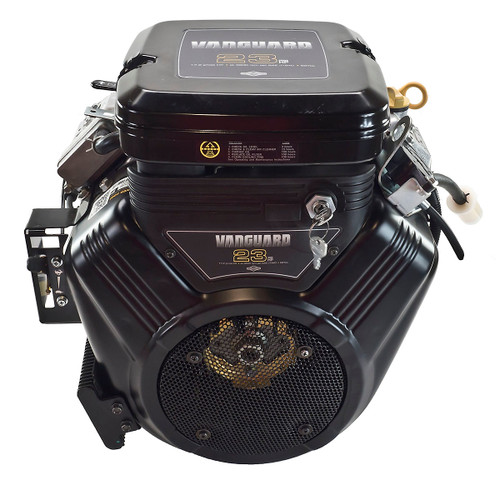

23hp Briggs & Stratton Vanguard Series Engine, Horizontal 1-1/8"x3" Keyed Shaft, Electric Start, 16 Amp Alternator, Dual-Clean Air Filter, Oil Filter & Cooler
Additional Shipping Cost $78.99
(Maximum surcharge listed. See actual total in cart.)
Item Specifications
Item Specifications
- Briggs & Stratton Vanguard Series
- 23hp
- Vanguard
- Valve Type: Overhead Valve
- Sleeved Bore: Yes
- Mounting: Horizontal
- Engine Displacement (cc): 627
- Starter Type: Electric Start
- Alternator: 16 Amp
- Oil Capacity: 1.16 Quart w/o Oil Filter, 1.48 w oil filter
- Oil type: SAE 10w-30
- Fuel Pump: Yes
- Oil Filter: Yes
- Oil Cooler: Yes
- Shaft Size: 1-1/8"Dx3"L
- Muffler: Not Included
- Throttle Type: Manual
- Choke Type: Manual
- Shipping Rate Weight: 99.65
- Product Condition: New
- Warranty: 3-Year Manufacturer's Warranty
Notes and Warnings
- This engine is Electric Start only and does not include a recoil starter.
- This has a vertical angled oil filter bracket which is most common. PTO 1/4" straight keyway, 7/16"-20 tapped hole. Includes Suppress Afterfire Solenoid.
- The gross power rating is measured in accordance with SAE J1995 at 3600 rpm (without the muffler and air filter in place). Torque values are derived at 2600 rpm. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
