386447-Case646-74-R1

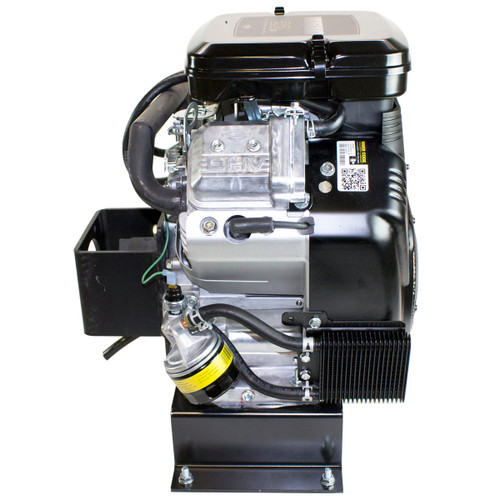

23hp Horizontal Vanguard, Conversion kit to fit Case 646 Tractors from 1974 -1976 Briggs & Stratton Engine
$1,999.00

In Stock:2

Additional Shipping Cost $139.99
(Maximum surcharge listed. See actual total in cart.)

Item Specifications

Item Specifications

  • 23hp
  • Vanguard
  • Oil Filter & Cooler
  • Complete Engine Repower Kit
  • Sleeved Bore: Yes
  • Mounting: Horizontal
  • Electric Start: Electric Start
  • Alternator: 16 Amp
  • Oil Capacity: 1.5 Quarts
  • Oil type: Synthetic 10W-30
  • Muffler: Included
  • Shipping Rate Weight: 151
  • Product Condition: New
  • Warranty: 3-Year Manufacturer's Warranty

Notes and Warnings
  • The color scheme on the 1974-1976 tractors is Yellow/Orange. An easy feature to look for on this tractor is that the hood hinges on the pins for the loader The hood also has a large mesh screen on top of the hood You may have to do a little wiring if you tractor has been changed in any way. You will have to drill a couple holes to bolt he muffler into the compartment, you will also have to drill a hole for the exhaust tubing to go through THIS WILL NOT FIT INTO A CASE 648
  • The gross power rating is measured in accordance with SAE J1995 at 3600 rpm (without the muffler and air filter in place). Torque values are derived at 2600 rpm. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
  • Small Engine Warehouse has designed and assembled each engine kit to match as closely as possible to the original installation. However, some adapting during installation should be expected.

Fits These Models
  • Case 646 tractors from 1974 to 1976
