356447-SIMP7100-1-R3

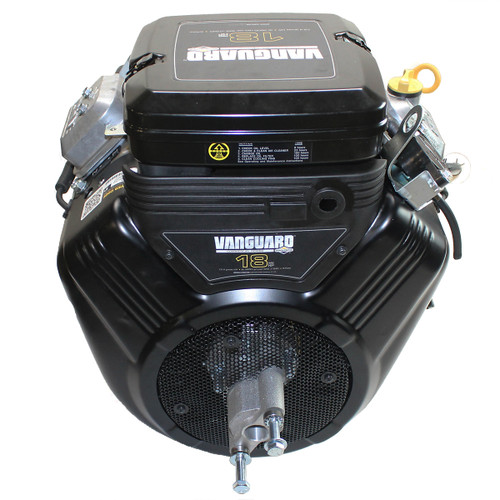

18hp Horizontal 1" Shaft, Vanguard, Conversion kit fits Simplicity 7112, 7117, 7119, AC 912, 916, 917,919 Briggs & Stratton Engine
$1,599.00

OUT OF STOCK

Temporarily out of stock. Order now or call 800-222-4303 for information

Additional Shipping Cost $139.99
(Maximum surcharge listed. See actual total in cart.)

Item Specifications

Item Specifications

  • Briggs & Stratton Vanguard Series
  • 18hp
  • Vanguard
  • Complete Engine Repower Kit
  • Valve Type: Overhead Valve
  • Sleeved Bore: Yes
  • Mounting: Horizontal
  • Engine Displacement (cc): 570
  • Electric Start: Electric Start
  • Alternator: 16 Amp
  • Oil Capacity: 1.5 Quarts
  • Oil type: Synthetic 10W-30
  • Fuel Pump: Yes
  • Shaft Size: 1"Dx2-29/32"L
  • Muffler: Included
  • Shipping Rate Weight: 151
  • Product Condition: New
  • Warranty: 3-Year Manufacturer's Warranty

Notes and Warnings
  • This will not come with an Oil Filter, the frame does not have enough room for it to fit Comes complete ready to bolt into Simplicity 7110, 7112, 7117 & 7119, 17GTH-L, and Allis Chalmers 910, 912, 914, 916, 917, 918, & 919
  • The gross power rating is measured in accordance with SAE J1995 at 3600 rpm (without the muffler and air filter in place). Torque values are derived at 2600 rpm. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
  • Small Engine Warehouse has designed and assembled each engine kit to match as closely as possible to the original installation. However, some adapting during installation should be expected.

Fits These Models
  • Simplicity 7117,7119 & Allis Chalmers 917,919
