31R977-0029

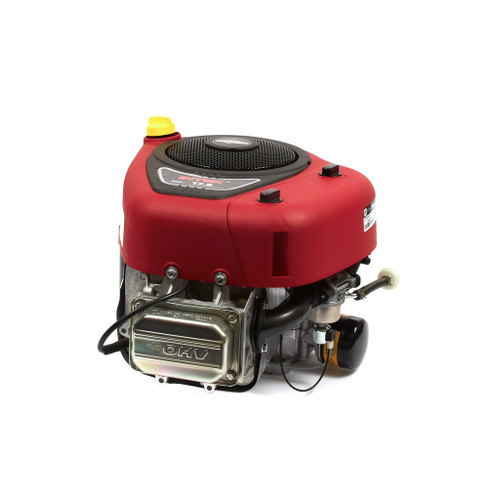

17.5hp Briggs & Stratton Intek Series Engine, Vertical 1x3-5/32 Keyed Shaft, Electric Start, 5/3 Amp Dual Circuit Alternator
Additional Shipping Cost $62.99
(Maximum surcharge listed. See actual total in cart.)
Item Specifications
Item Specifications
- Briggs & Stratton Intek Series
- 17.5hp
- Intek I/C
- Valve Type: Overhead Valve
- Sleeved Bore: Yes
- Mounting: Vertical
- Engine Displacement (cc): 500
- Starter Type: Electric Start
- Alternator: 5/3 Amp Dual
- Oil Capacity: 1-1/2 Quart
- Oil type: Synthetic 5W-30, 10W-30
- Oil Filter: Yes
- Shaft Size: 1"Dx3-5/32"L

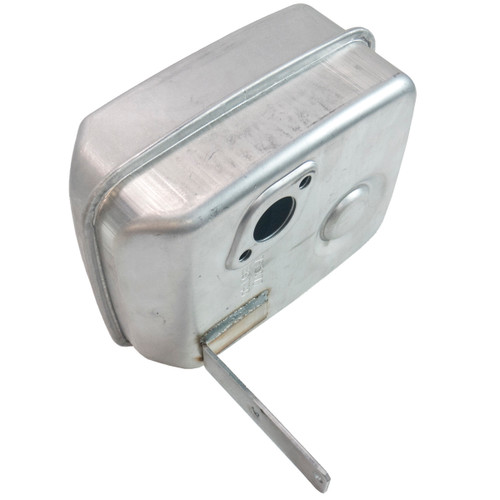

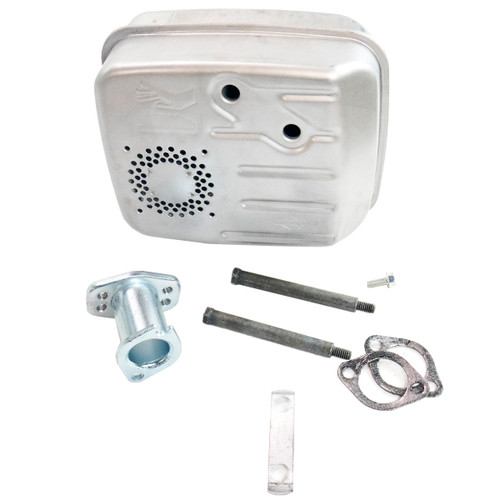

- Muffler: Included
- Throttle Type: Remote
- Choke Type: Automatic
- Shipping Rate Weight: 79.2
- Product Condition: New
- Warranty: 2-Year Manufacturer's Warranty
- Manufacturer Country: United States
Notes and Warnings
- PTO Tapped 7/16"-20, 1/4" Keyway
- The gross power rating is measured in accordance with SAE J1995 at 3600 rpm (without the muffler and air filter in place). Torque values are derived at 2600 rpm. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
- Picture is of a similar item, but not of the exact item being sold.
Fits These Models
- John Deere Riding Mower
