CH395-TROY-34-R1

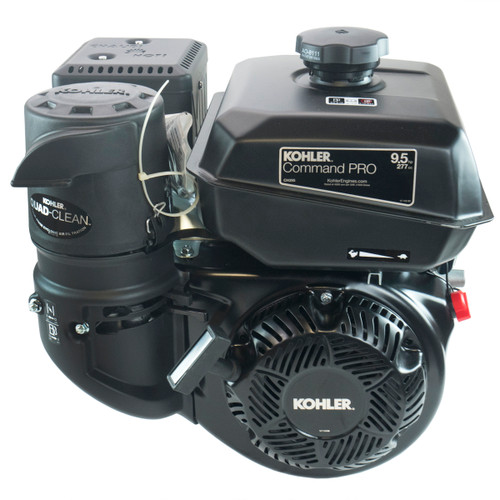

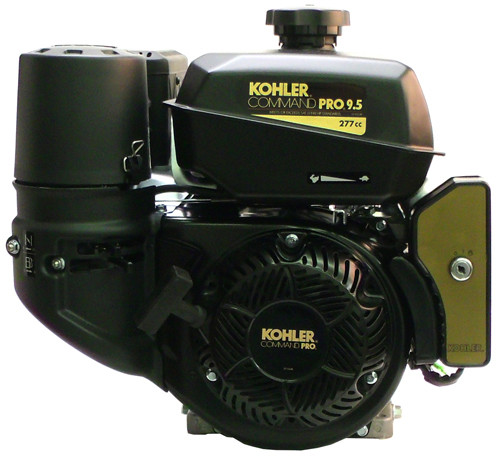

9.5hp Kohler Command Pro Engine, Horizontal 3/4"x 2-5/16" Keyed Shaft, Cyclonic Air Filter, fits Troy Bilt tillers
$399.00

In Stock:7

Additional Shipping Cost $58.99
(Maximum surcharge listed. See actual total in cart.)

Item Specifications

Item Specifications

  • Kohler Command Pro Series
  • 9.5hp
  • Command Pro
  • Cyclone Air Filter
  • Complete Engine Repower Kit
  • Valve Type: Overhead Valve
  • Sleeved Bore: Yes
  • Mounting: Horizontal
  • Engine Displacement (cc): 277
  • Electric Start: Recoil Start
  • Alternator: None
  • Low Oil Shutdown: Yes (Low oil sensor may have to be disconnected to prevent engine stops during angled operation equipment like tillers.)
  • Oil Capacity: 1.2 Quarts (38oz)
  • Oil type: 10W-30
  • Fuel Tank Capacity: 1.85 Gallon
  • Shaft Size: 3/4"Dx2-5/16"L
  • Muffler: Included
  • Throttle Type: Manual
  • Choke Type: Manual
  • Shaft Height above Mounting Base: 5.25"
  • Shipping Rate Weight: 78.59
  • Product Condition: New
  • Warranty: 3-Year Manufacturer's Warranty

Notes and Warnings
  • The gross power rating is measured in accordance with SAE J1995 at 3600 rpm (without the muffler and air filter in place). Torque values are derived at 2600 rpm. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
  • Small Engine Warehouse has designed and assembled each engine kit to match as closely as possible to the original installation. However, some adapting during installation should be expected.
